High-pressure boosters for an efficient compressed air supply
This complete system has it all: With a new design featuring a footprint approximately half the size of their predecessors, CN C and DN C series boosters look as good on the inside as they do on the outside. A new component layout not only ensures optimisation of the cooling air flow, but also provides improved maintenance access.
Furthermore, the revised SIGMA CONTROL 2 controller provides new, multiple monitoring and control options with an assortment of interfaces, as well as being fully compatible with master control systems, thereby offering the facility for dynamic control.
On SFC versions of the DN C series, compressor flow rate is matched to the actual air demand of the application in question, which means that only as much energy is consumed as is needed to produce the exact amount of compressed air required.

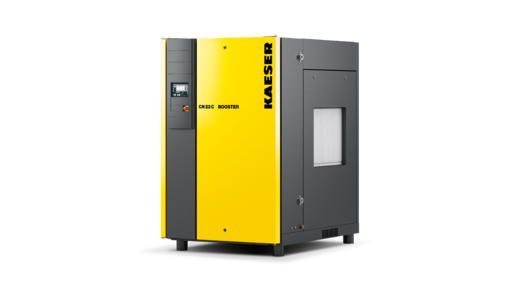

CN C series performance parameters:
- 7.5 – 22 kW
- Initial pressure: 3 – 10 bar
- Final pressure: 10 – 45 bar
- Flow rate: 0.8 – 8.0 m³/min

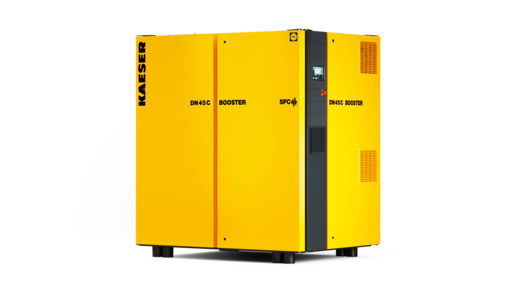

DN C series performance parameters:
- 22 – 45 kW
- Initial pressure: 3 – 10 bar
- Final pressure: 10 – 45 bar
- Flow rate: 2.26 – 19.60 m³/min
Optional features:
High-pressure boosters are available as air or water-cooled versions. CN C series high-pressure boosters are delivered as standard with air-cooling. A version equipped for nitrogen compression, sealed to prevent outside air from penetrating, is also available (N2 version).
Applications:
PET bottle production, process air applications, nitrogen generation, high pressure for testing facilities, e.g. for pressure tests, burst pressure tests, and pulse tests (on brakes, coolers, etc.).
Your benefits:
- Compact footprint:
This unique, space-saving system is compact yet powerful, therefore no need to compromise on performance, reliability or energy efficiency! - Minimal installation effort:
DN C and CN C boosters are delivered ready for connection to a power supply. The systems can be configured for a large number of applications, including self-monitoring applications. - Save service costs
thanks to the new design with access from the front. This configuration was made possible thanks to a new component layout, which also reduces the effort required for maintenance tasks, such as when performing belt changes.
Energy cost savings
High-quality premium efficiency electric motors deliver unparalleled efficiency for remarkably low power consumption. Their low operating temperature provides an added advantage.
Product details
- Extended service life:
The motor and airend have been decoupled from the rest of the machine. The control cabinet, cooler, fan and pipework are therefore significantly less affected by vibrations. - Optimised access for maintenance work:

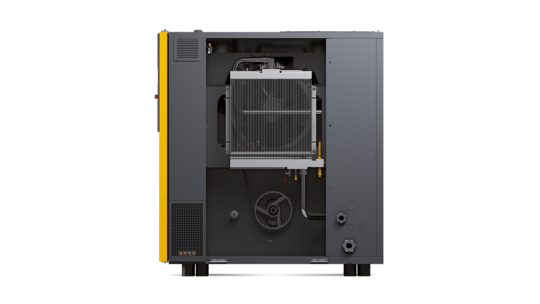

Side view with air cooler installed – better access once again here thanks to easily removable panel - Improvement for maintenance work:
Belt change, solenoid valve servicing (nitrogen version) or replacement of dirt trap on inlet valve

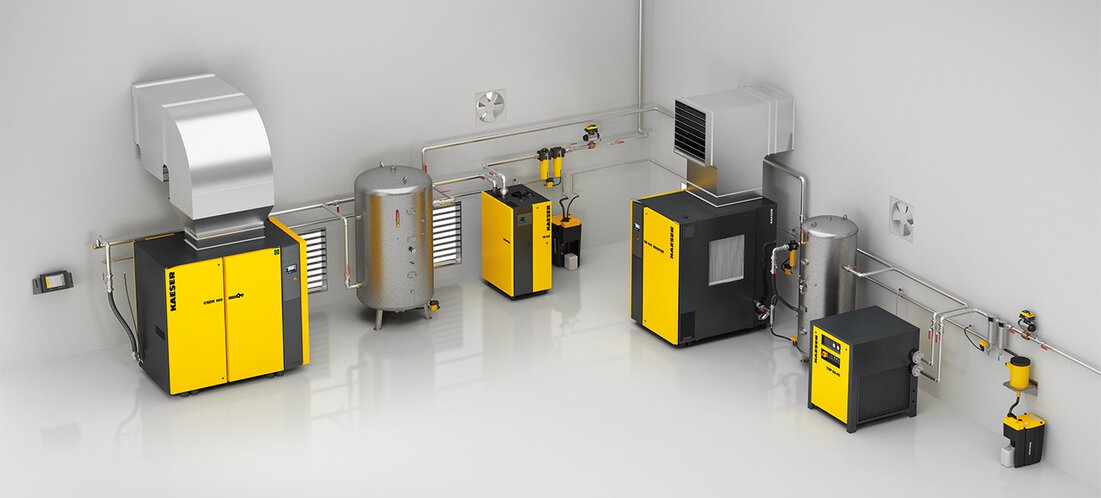

Example of compressed air station featuring high-pressure booster
- Flexible hose line, final pressure side
- Check valve between collecting pipe and aftercooler
- Flexible hose line, initial pressure side
- Redesigned cylinder heads
- Large air collecting pipe for reduced pulsations
- Damping element
