Compact design with impressive performance
Kaeser rotary screw compressors with V-belt drive provide outstanding efficiency and reliability. an energy-saving SIGMA PROFILE airend and a SIGMA CONTROL 2 controller to ensure outstanding efficiency and performance. You can choose from four series with these technical parameters:
- Pressure: 8, 11 or 15 bar
- Flow rate: 0.26 – 4.65 m³/min
All series are available as standard models but also with
- Add-on refrigeration dryer for high compressed air quality and/or
- Speed-controlled motor for a large flow rate control range. (SM, SK and ASK series)
We will gladly tell you which model is the perfect solution for you.
Your advantages
- Highly-efficient power transmission:
The quality drive belt with automatic tensioning device ensures consistent transmission efficiency and excellent drive system reliability over the entire service life. - Easy maintenance:
The housing is easily opened. All components are logically arranged and easy to access. Maintenance work is therefore made quick and simple. - Exceptionally quiet:
The soundproofed housing reduces operational noise to a minimum. Normal conversation can take place right next to the compressor.
Profitable thanks to low life-cycle costs
Our comprehensive approach to optimal profitability: Optimal efficiency, easiest operation, service-friendliness and a global service and consulting network with fast response times.
Our rotary screw compressors with belt drive in detail
| Standard | Drive | Power range kW | Flow rate m³/min | Pressure bar | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

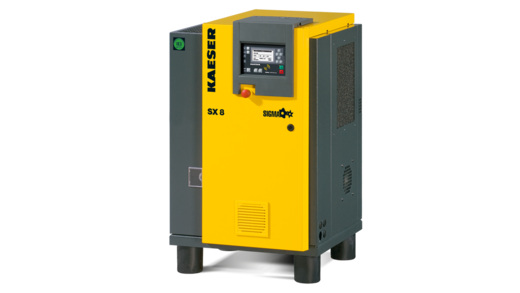

| SX | Flat drive belt | 2.2 – 5.5 | 0.26 – 0.81 | 8/11/15 | ||||||||

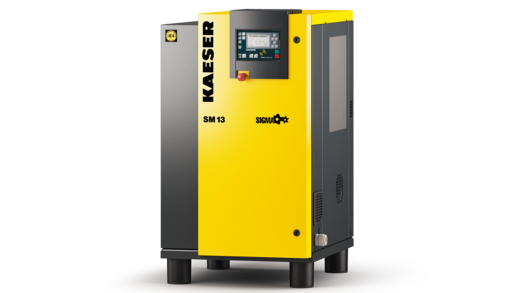

| SM | V-belt | 5.5 – 9 | 0.39 – 1.64 | 8/11/15 | ||||||||
| SK | V-belt | 11 – 15 | 0.53 – 2.7 | 8/11/15 | ||||||||

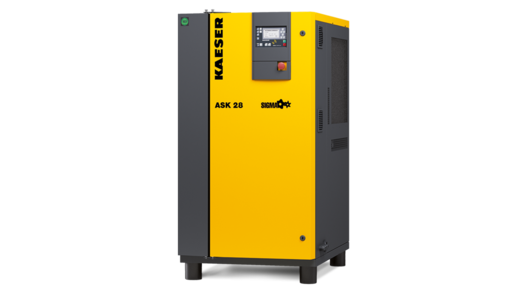

| ASK | V-belt | 15 – 22 | 0.79 – 4.65 | 8/11/15 | ||||||||
Find the right compressor
Save energy and costs by selecting a compressor with just the right amount of power to suit your needs. Ask us – we will gladly help you select the right unit.
Complete unit
- Ready-to-run
- Fully automatic
- Super silenced
- Vibration-damped
- All panels powder-coated
- For ambient temperatures up to +45 °C
- Easy access to all service points thanks to removable left cover
Electric motor
- IE3 premium efficiency motor
- Quality German manufacture
- IP 54
Rotary screw airend
SIGMA PROFILE rotors require approximately 10 to 20 percent less energy than conventional rotors of the same air delivery capacity.
Efficient cooling
- Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
- Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
- Pressure relief valve
- Minimum pressure check valve
- Thermostatic valve and fluid filter in coolant circuit
- Fluid / compressed air combination cooler
Refrigeration dryer (with T version)
- With electronically-controlled condensate drain
- Refrigerant compressor with energy-saving, cycling shut-down feature
- Linked to operational status of the compressor when inactive
- Alternatively, continuous operation can be selected on site
- Contains fluorinated greenhouse gas R-513A
Electrical components
- Control cabinet to IP 54
- Control cabinet ventilation
- Automatic star-delta starter
- Overload relays
- Control transformer
SIGMA CONTROL 2
- "Traffic-light" LED indicators show operational status at a glance
- Easy-to-read display
- 30 selectable languages
- Soft-touch icon buttons
- Fully-automatic monitoring and control
- Dual, Quadro, Vario and Continuous control modes available as standard
- Interfaces: Ethernet
- Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
- SD card slot for data logging and updates
- RFID reader
- Web server
Complete unit
- Ready-to-run
- Fully automatic
- Super silenced
- Vibration-damped
- All panels powder-coated
- For ambient temperatures up to +45 °C
Rotary screw airend
- Single stage with cooling fluid injection for optimal rotor cooling
- Genuine KAESER screw compressor airend with the SIGMA PROFILE
Electric motor
- Premium Efficiency IE3 or IE4
- Quality German manufacture
- IP 54
Efficient cooling
- Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
- Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
- Pressure relief valve
- Minimum pressure check valve
- Thermostatic valve and fluid filter in coolant circuit
- Fluid / compressed air combination cooler
Refrigeration dryer (with T version)
- With electronically-controlled condensate drain
- Refrigerant compressor with energy-saving, cycling shut-down feature
- Linked to operational status of the compressor when inactive
- Alternatively, continuous operation can be selected on site
- Contains fluorinated greenhouse gas R-513A
Electrical components
- Control cabinet to IP 54
- Control cabinet ventilation
- Automatic star-delta starter
- Overload relays
- Control transformer
SIGMA CONTROL 2
- "Traffic-light" LED indicators show operational status at a glance
- Easy-to-read display
- 30 selectable languages
- Soft-touch icon buttons
- Fully-automatic monitoring and control
- Dual, Quadro, Vario and Continuous control modes available as standard
- Interfaces: Ethernet
- Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
- SD card slot for data logging and updates
- RFID reader
- Web server
Complete unit
- Ready-to-run
- Fully automatic
- Super silenced
- Vibration-damped
- All panels powder-coated
- For ambient temperatures up to +45 °C
Rotary screw airend
- Single stage with cooling fluid injection for optimal rotor cooling
- Genuine KAESER screw compressor airend with the SIGMA PROFILE
Electric motor
- IE3 premium efficiency motor
- Quality German manufacture
- IP 54
Efficient cooling
- Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
- Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
- Pressure relief valve
- Minimum pressure check valve
- Thermostatic valve and fluid filter in coolant circuit
- Fluid / compressed air combination cooler
Refrigeration dryer (with T version)
- With electronically-controlled condensate drain
- Refrigerant compressor with energy-saving, cycling shut-down feature
- Linked to operational status of the compressor when inactive
- Alternatively, continuous operation can be selected on site
- Contains fluorinated greenhouse gas R-513A
Electrical components
- Control cabinet to IP 54
- Control cabinet ventilation
- Automatic star-delta starter
- Overload relays
- Control transformer
SIGMA CONTROL 2
- "Traffic-light" LED indicators show operational status at a glance
- Easy-to-read display
- 30 selectable languages
- Soft-touch icon buttons
- Fully-automatic monitoring and control
- Dual, Quadro, Vario and Continuous control modes available as standard
- Interfaces: Ethernet
- Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
- SD card slot for data logging and updates
- RFID reader
- Web server
Complete unit
- Ready for operation
- Fully automatic
- Super silenced
- Vibration-damped
- All panels powder-coated
- For ambient temperatures up to +45 °C
Sound insulation
Panels lined with laminated mineral wool
Vibration dampening
- Anti-vibration mounts
- Dual anti-vibration mount
Airend
- Single stage with cooling fluid injection for optimal rotor cooling
- Genuine KAESER screw compressor airend with the SIGMA PROFILE
Drive
- V-belt drive with automatic belt tensioning
Electric motor
- IE3 premium efficiency motor
- Premium quality German-made motor
- IP 55
- Insulation class F for greater power reserve
Electrical components
- Control cabinet to IP 54
- Control transformer
- Siemens frequency converter
- Volt-free contacts for ventilation control
Fluid and air flow
- Dry air filter
- Pneumatic inlet and venting valves
- Cooling fluid reservoir with three-stage separator system
- Pressure relief valve
- Minimum pressure/check valve
- Thermostatic valve and micro-filter in coolant circuit
- All fully piped
- Flexible couplings
Cooling
Energy-saving radial fan
- Air-cooled
- Separate aluminium coolers for compressed air and fluid
- Radial fan meets the high requirements on fan efficiency demanded by the EU Directive 327/2011
Refrigeration dryers
Refrigeration dryer with ECO-DRAIN
- CFC-free
- Contains fluorinated greenhouse gas R-513A
- Fully insulated
- Hermetically sealed refrigerant circuit
- Rotary refrigerant compressor with energy-saving, cycling shut-down feature
- Hot gas bypass control
- Electronic condensate drain
Heat recovery (HR)
- Optionally available with integrated heat recovery system (plate-type heat exchanger)
SIGMA CONTROL 2
- "Traffic-light" LED indicators show operational status at a glance
- Easy-to-read display
- 30 selectable languages
- Soft-touch icon buttons
- Fully-automatic monitoring and control
- Dual, Quadro, Vario and Continuous control modes available as standard
- Interfaces: Ethernet
- Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
- SD card slot for data logging and updates
- RFID reader
- Web server
