Quality doesn't need a lot of space

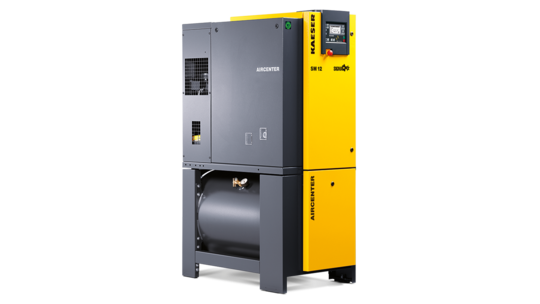

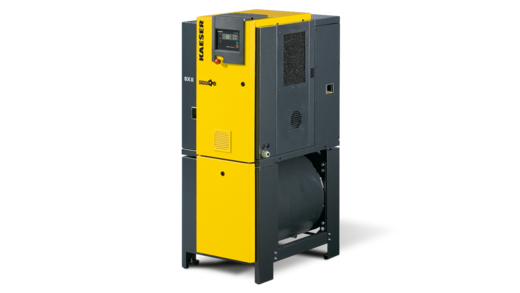

AIRCENTER compressed air stations (*) by KAESER provide their owners with complete solutions in premium quality. Featuring a rotary screw compressor with SIGMA PROFILE airend technology, an add-on refrigeration dryer and a compressed air receiver, these space-saving systems provide an uncomplicated compressed air supply that is suited to a wide of applications. The SX, SM and SK series AIRCENTER feature these technical parameters:
- Pressure: 8, 11 or 15 bar
- Flow rate range: 0.26 – 2.55 m³/min
Our premium compressed air stations require little space and are the perfect solution for smaller industrial operations.
Your advantages
- Space-saving integrated solution:
Compressor, refrigeration dryer and air receiver take just one square metre with this system. - Protection from corrosion damage:
Thanks to the integrated refrigeration dryer, the system delivers high air quality and protects your equipment from corrosion damage. - Fast installation:
Simply connect this compact compressed air package to the power supply and compressed air distribution network. Compared to a conventional air station, you avoid major piping and installation efforts.
* This dryer series contains fluorinated greenhouse gases. All models contain refrigerant R-513A (GWP 631).
Profitable thanks to low life-cycle costs
Our comprehensive approach to optimal profitability: Optimal efficiency, easiest operation, service-friendliness and a global service and consulting network with fast response times.
Our AIRCENTER premium packages in detail
| Series | Power range kW | Flow rate m³/min | Pressure bar | Footprint m² |
|---|---|---|---|---|
| AIRCENTER 3 – 8 | 2.2 – 5.5 | 0.26 – 0.80 | 8/11/15 | 0.64 |
| AIRCENTER 9 – 15 | 5.5 – 9 | 0.55 – 1.50 | 8/11/15 | 0.76 |
| AIRCENTER 12 SFC (with speed-controlled motor) | 5.5 | 0.30 – 1.24 | 8/11/15 | 0.76 |
| AIRCENTER 22 – 25 | 11 – 15 | 1.32 – 2.50 | 8/11/15 | 1.03 |
| AIRCENTER 22 – 25 SFC (with speed-controlled motor) | 11 – 15 | 0.57 – 2.55 | 8/11/15 | 1.03 |
All AIRCENTER models are equipped with the SIGMA CONTROL 2 controller.
Find the right compressor
Save energy and costs by selecting a compressor with just the right amount of power to suit your needs. Ask us – we will gladly help you select the right unit.
Complete unit
- Ready-to-run
- Fully automatic
- Super silenced
- Vibration-damped
- All panels powder-coated
- For ambient temperatures up to +45 °C

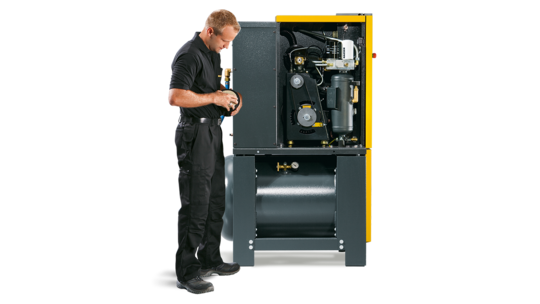

- Easy access to all service points thanks to removable left cover
Electric motor
- Premium Efficiency IE3
- Premium quality German-made motor
- IP 54

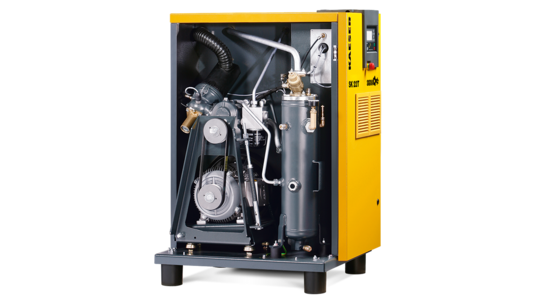

Rotary screw airend
SIGMA PROFILE rotors require approximately 10 to 20 percent less energy than conventional rotors of the same air delivery capacity.
Efficient cooling
- Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
- Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
- Safety valve
- Minimum pressure check valve
- Thermostatic valve and fluid filter in coolant circuit
- Fluid / compressed air combination cooler
Refrigeration dryer (with T version)
- With electronically-controlled condensate drain
- Refrigerant compressor with energy-saving, cycling shut-down feature
- Linked to operational status of the compressor when inactive
- Alternatively, continuous operation can be selected on site
- Contains fluorinated greenhouse gas R-513A
Electrical components
- Control cabinet to IP 54
- Switching cabinet ventilation
- Automatic star-delta starter
- Overload relays
- Control transformer
SIGMA CONTROL 2
- "Traffic-light" LED indicators show operational status at a glance
- Easy-to-read display
- 30 selectable languages
- Soft-touch icon buttons
- Fully-automatic monitoring and control
- Dual, Quadro, Vario and Continuous control modes available as standard
- Interfaces: Ethernet
- Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
- SD card slot for data logging and updates
- RFID reader
- Web server
Complete unit
- Ready-to-run
- Fully automatic
- Super silenced
- Vibration-damped
- All panels powder-coated
- For ambient temperatures up to +45 °C
Electric motor
- Premium Efficiency IE3 / Super Premium Efficiency IE4
- Premium quality German-made motor
- IP 54
Rotary screw airend
- Single stage with cooling fluid injection for optimal rotor cooling
- SIGMA PROFILE rotors require approximately 10 to 20 percent less energy than conventional rotors of the same air delivery capacity.
Refrigeration dryers
- Separate housing for great reliability
- With electronically-controlled condensate drain
- Refrigerant compressor with energy-saving, cycling shut-down feature
- Linked to operational status of the compressor when inactive
- Alternatively, continuous operation can be selected on site
- Contains fluorinated greenhouse gas R-513A
Efficient cooling
- Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
- Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
- Pressure relief valve
- Minimum pressure check valve
- Thermostatic valve and fluid filter in coolant circuit
- Fluid / compressed air combination cooler
Electrical components
- Control cabinet to IP 54
- Switching cabinet ventilation
- Automatic star-delta starter
- Overload relays
- Control transformer
SIGMA CONTROL 2
- "Traffic-light" LED indicators show operational status at a glance
- Easy-to-read display
- 30 selectable languages
- Soft-touch icon buttons
- Fully-automatic monitoring and control
- Dual, Quadro, Vario and Continuous control modes available as standard
- Interfaces: Ethernet
- Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
- SD card slot for data logging and updates
- RFID reader
- Web server
Complete unit
- Ready-to-run
- Fully automatic
- Super silenced
- Vibration-damped
- All panels powder-coated
- For ambient temperatures up to +45 °C
- Easy access to all service points thanks to removable left cover
Electric motor
- Premium Efficiency IE3
- Premium quality German-made motor
- IP 54
Rotary screw airend
- Single stage with cooling fluid injection for optimal rotor cooling
- SIGMA PROFILE rotors require approximately 10 to 20 percent less energy than conventional rotors of the same air delivery capacity.
Efficient cooling
- Dual flow fan and separate air flow channels for cooling of the motor, the fluid/compressed air cooler and the control cabinet
- Fluid and air flow: 'Honeycomb' air intake filter, pneumatic inlet and venting valves, cooling fluid separator tank with triple separation system
- Pressure relief valve
- Minimum pressure check valve
- Thermostatic valve and fluid filter in coolant circuit
- Fluid / compressed air combination cooler
Refrigeration dryer (with T version)
- With electronically-controlled condensate drain
- Refrigerant compressor with energy-saving, cycling shut-down feature
- Linked to operational status of the compressor when inactive
- Alternatively, continuous operation can be selected on site
- Contains fluorinated greenhouse gas R-513A
Electrical components
- Control cabinet to IP 54
- Switching cabinet ventilation
- Automatic star-delta starter
- Overload relays
- Control transformer
SIGMA CONTROL 2
- "Traffic-light" LED indicators show operational status at a glance
- Easy-to-read display
- 30 selectable languages
- Soft-touch icon buttons
- Fully-automatic monitoring and control
- Dual, Quadro, Vario and Continuous control modes available as standard
- Interfaces: Ethernet
- Additional optional communication modules for: Profibus DP, Modbus, Profinet and DeviceNet
- SD card slot for data logging and updates
- RFID reader
- Web server
- SK rotary screw compressors are optionally available with SIGMA CONTROL BASIC
